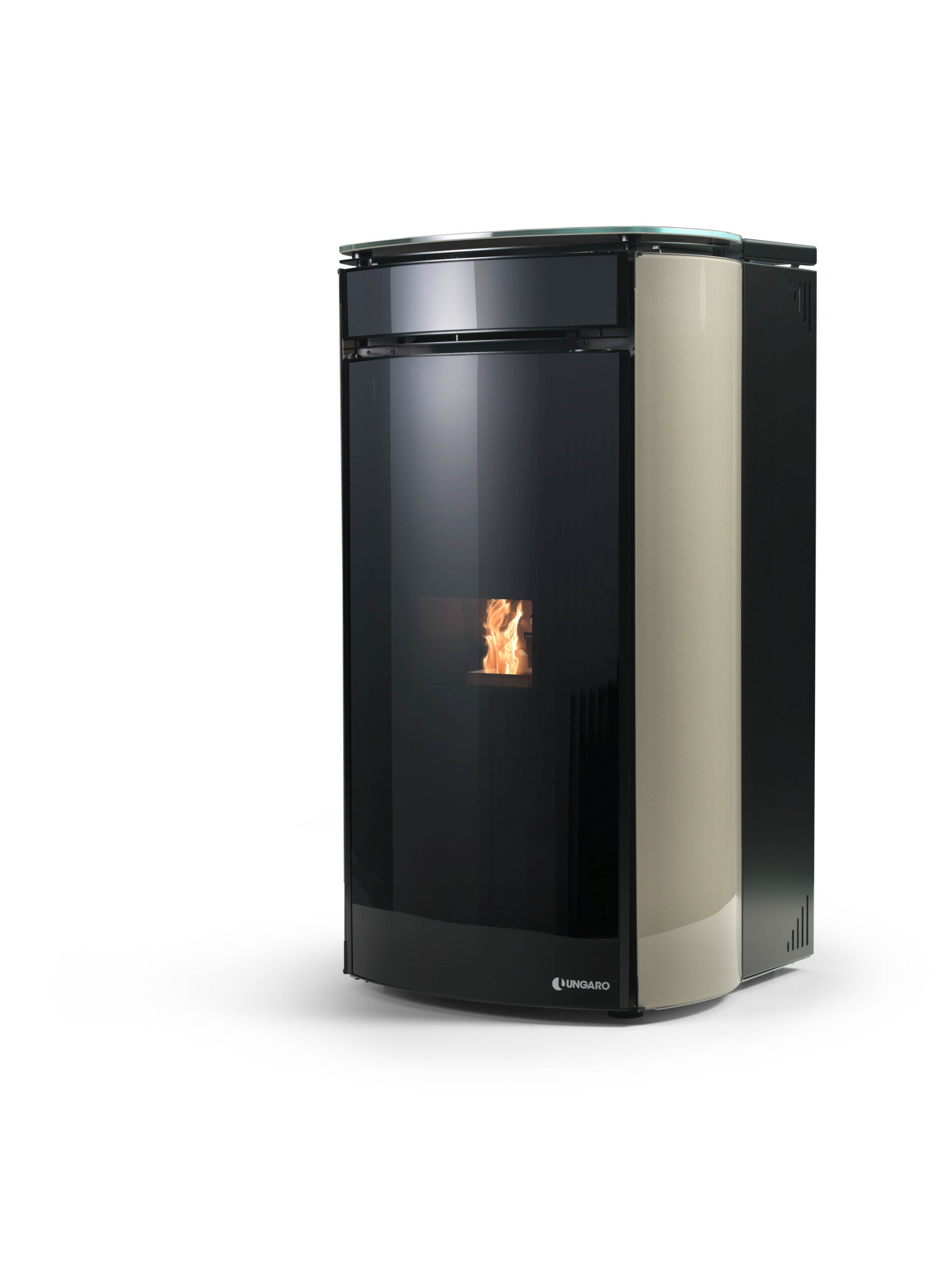

F Glass 9/34 8/30
 |
 |
 |
 |
 |
Description
Pellet hydro stove with automatic combustion modulation for central home heating. Frontal air blower. Kit for continuous domestic hot water supply (optional). Glass finish and aesthetic door.
Additional information
| Weight | 210 kg |
|---|---|
| Dimensions | 600 × 580 × 1206 mm |
Plus
• Patented heat exchanger in copper (Maia) or in stainles steel AISI 304(Aqa);
• Patented system of easy and fast cleaning of the heat exchanger;
• Easy clean burn pot (version M1);
• Automatic burn pot cleaner (version A1);
• Comflux: controlled flow of combustion air;
• Ash drawer Easy Clean;
• Frontal hot air diffusion (can be disabled if necessary);
• Double door (aesthetic / technical);
• High resolution LCD display;
• 3 automatic programming;
• Electronic burn pot cleaning;
• Dynamic modulation of combustion power;
• Return probe for optimized modulation;;
• Auxiliary contact for external thermostat;
• Multi system control (Boiler/Cylinder);
• Digital pressure gauge;
• High-efficiency pump;
• Mechanical draft control;
• Water pressure safety control;
• Expansion vessel, 3 bar safety valve;
• Anti-vibration rubber pads.
Optional
• WiFi;
• Cordless remote display;
• Cordless remote thermostat;
• Touch screen control panel;
• Pneumatic built-in pellet loading system with an external storage of 200/400 kg;
• Kit for continuous domestic hot water supply;
• Kit ∆t 20°: return temperature control for heating systems with more than 150L of water;
• KlimaWorks – a probe for external temperature;
• DHW tank/cylinder probe;
• Transparent glass hearth plate.
Data sheet
| Dati Tecnici | AQA | MAIA | ||
|---|---|---|---|---|
| Potenza Termochimica Heat input | max | kW | 25,7 | 24,3 |
| min | kW | 6,9 | 6,8 | |
| Potenza Nominale Nominal power | max | kW | 23,5 | 22 |
| min | kW | 6,5 | 6,5 | |
| Rendimento Efficiency | max | % | 91,5 | 90,5 |
| min | % | 94 | 95,5 | |
| Potenza all'acqua Power to water | max | kW | 19,5 | 19,5 |
| min | kW | 4,5 | 5,0 | |
| Potenza all'aria Power to air | max | kW | 4,0 | 2,5 |
| min | kW | 2,0 | 1,5 | |
| Consumo orario pellet Pellet consumption per hour | max | kg | 5,4 | 5,0 |
| min | kg | 1,4 | 1,4 | |
| Capacità serbatoio Pellet hopper | kg | 35 | 35 | |
| Volume Riscaldabile Heating volum | m3 | 670 | 670 | |
| Uscita scarico fumi Exhaust pipe | Ømm | 80 | 80 | |
| Tiraggio Draft | Pa | 12 | 12 | |
| Entrata aria comburente Air intake | Ømm | 60 | 60 | |
| Prevalenza Circolatore Water pump prevalence | m | 5 | 5 | |
| Pressione utilizzo a freddo Water pump prevalence | bar | 0,8/1,2 | 0,8/1,2 | |
| Dimensione vaso di spansione Expansion vessel | l | 6 | 6 | |
| Tensione alimentazione Power supply | V | 220 | 220 | |
| Hz | 50 | 50 | ||
| Assorbimento elettrico in fase di lavoro Energy consumption | W | 350 | 360 | |
| Produzione acqua calda sanitaria (optional) Domestic hot water supply (optional) | l/min | 12 | 12 |
Colors
| RAL 9005 | RAL 3004 | RAL 9010 | RAL 1035 |
